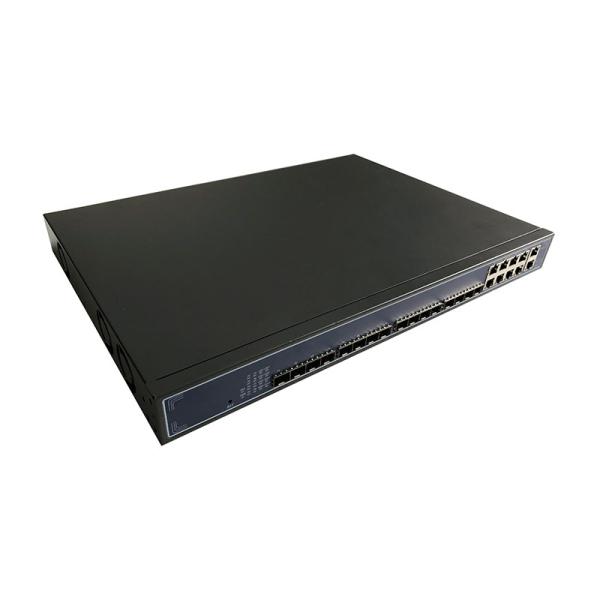

    Buy cheap FTTH FTTX 8 Port EPON GPON OLT Zikun ZC-1008E Fiber Optic OLT from wholesalers

    Buy cheap FTTH FTTX 8 Port EPON GPON OLT Zikun ZC-1008E Fiber Optic OLT from wholesalers
    • Buy cheap FTTH FTTX 8 Port EPON GPON OLT Zikun ZC-1008E Fiber Optic OLT from wholesalers
    • Buy cheap FTTH FTTX 8 Port EPON GPON OLT Zikun ZC-1008E Fiber Optic OLT from wholesalers
    • Buy cheap FTTH FTTX 8 Port EPON GPON OLT Zikun ZC-1008E Fiber Optic OLT from wholesalers

    FTTH FTTX 8 Port EPON GPON OLT Zikun ZC-1008E Fiber Optic OLT

    Ask Lasest Price
    Brand Name : ZiKUN
    Model Number : ZC-1008G
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : 5-15 work days
    • Product Details
    • Company Profile

    FTTH FTTX 8 Port EPON GPON OLT Zikun ZC-1008E Fiber Optic OLT

    FTTH FTTX Fiber Optic Zikun ZC-1008E 8-Port EPON GPON OLT
    FTTH FTTX 8 Port EPON GPON OLT Zikun ZC-1008E Fiber Optic OLT

    Roduct Description


    ZC-1008E EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “TriplePlay”, VPN, IP Camera, Enterprise LAN and ICT applications.


    There are three OLT model in this series, include ZC-1004E, ZC-1008E and ZC-1016E.


    ZC-1008E provides 8GE(copper) and 8SFP slots independent interface for uplink, and 8*EPON OLT ports for downlink. It can be supported up to 128 ONUs under 1:64 splitter ratio.


    Technical Specifications
    ItemZC-1008E
    ChassisRack1U 19 inch standard box

    1000M
    Uplink Port

    QTY16
    Copper8*10/100/1000M auto-negotiation
    SFP
    (independent)
    8*SFP Or 4*SFP and SFP+ slots (SFP+ is 10GE port
    EPON PortQTY8
    Physical InterfaceSFP Slots
    Connector Type1000BASE-PX20+
    Max splitting ratio1:64
    Management Ports1*10/100BASE-T out-band port, 1*CONSOLE port
    PON Port SpecificationTransmission Distance20KM
    EPON port speedSymmetrical 1.25Gbps
    WavelengthTX 1490nm, RX 1310nm
    ConnectorSC/PC
    Fiber Type9/125μm SMF
    TX Power+2~+7dBm
    Rx Sensitivity-27dBm
    Saturation Optical Power-6dBm
