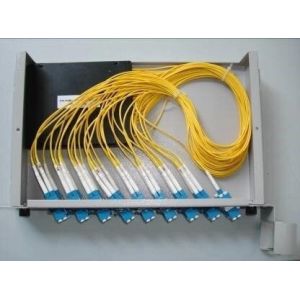

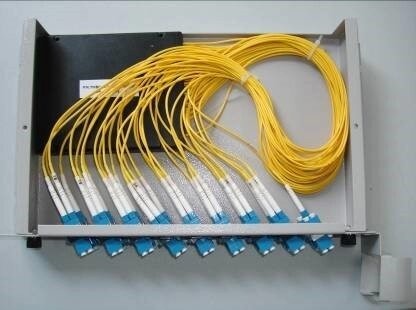

Fiber Optic Splitter Frame Type Optical Splitter With SC UPC
Connectors
Product Description
Planar Lightwave Circuit (PLC) Splitter is a power splitter based
on the silica glass baseplate. There are two types of PLC Splitters
which is 1xN and 2xN. It divides uniformly optical signals from one
or two inputs to multiple outputs. The splitter can be operated in
reverse direction to combine multiple signals into one fiber or two
fibers. Numbering is tagged with permanent marking on each output
to ease the port identification.
Technical Parameter
| Product name | Product type | Size(width x depth x height)mm |
| 19 inch Frame Splitter Box 1.5U | PLC321(SC) | 487×250×65.5 |
| 19 inch Frame Splitter Box 1.5U | PLC321(FC) | 487×250×65.5 |
| 19 inch Frame Splitter Box 1.5U | PLC321(LC) | 487×250×65.5 |
2×N Optical Characteristics of PLC Optical Splitter
| Parameter | Unit | Index | ||||||
| 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 | ||
| Working bandwidth | nm | 1260～1610 | ||||||
| Insertion loss | dB | ≤4.0 | ≤7.5 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.4 | ≤24.0 |
| Polarization related loss | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.5 |
| uniformity | dB | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| Return loss | dB | ≥55 | ||||||
| directivity | dB | ≥55 | ||||||
| working/storage temperature | ℃ | -40～+85 | ||||||
1×N Optical Characteristics of PLC Optical Splitter
| Parameter | Unit | Index | ||||||
| 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | ||
| Working bandwidth | nm | 1260～1610 | ||||||
| Insertion loss | dB | ≤3.8 | ≤7.2 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.1 | ≤23.7 |
| Polarization related loss | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| uniformity | dB | ≤0.5 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| Return loss | dB | ≥55 | ||||||
| directivity | dB | ≥55 | ||||||
| working/storage temperature | ℃ | -40～+85 | ||||||
|
|
