| Brand Name : | ZIKUN |
| Model Number : | ZK-HX4X-100-80 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 5-15 work days |

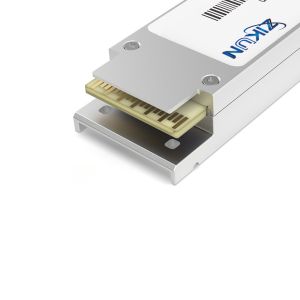

SFP Module 100G QSFP28 ZR4 80Km Optical Fiber Optic Transceiver
Product Features
⚫ Compliant with 100GBASE-ZR4
⚫ Support line rates from 103.125 Gb/s to 111.81 Gb/s OTU4
⚫ LAN WDM EML laser and PIN receiver with SOA
⚫ Up to 80km reach for G.652 SMF
⚫ Hot pluggable 38 pin electrical interface
⚫ QSFP28 MSA compliant
⚫ Duplex LC optical receptacle
⚫ RoHS-10 compliant and lead-free
⚫ Single +3.3V power supply
⚫ Maximum power consumption 6.5W
⚫ All-metal housing for superior EMI performance
⚫ Case operating temperature : 0°C to +70°C/ -40°C to +85°C
Ordering Information
Product Number | Data Rate (Gb/s) | Wavelength (nm) | Reach (km) | LD | Tx Power (dBm) | PD | Rx Sens (dBm) | Temperature (C) |
ZK-HX4X-100-80C | 100 | 1295.56, 1300.05, 1304.58, 1309.14 | 80 | LAN WDM TOSA | 2.0 ~4.5 | SOA+PIN | < -24 | 0~70 |
ZK-HX4X-100-80I | 100 | 80 | 2.0 ~4.5 | SOA+PIN | < -24 | -40~85 |
|
